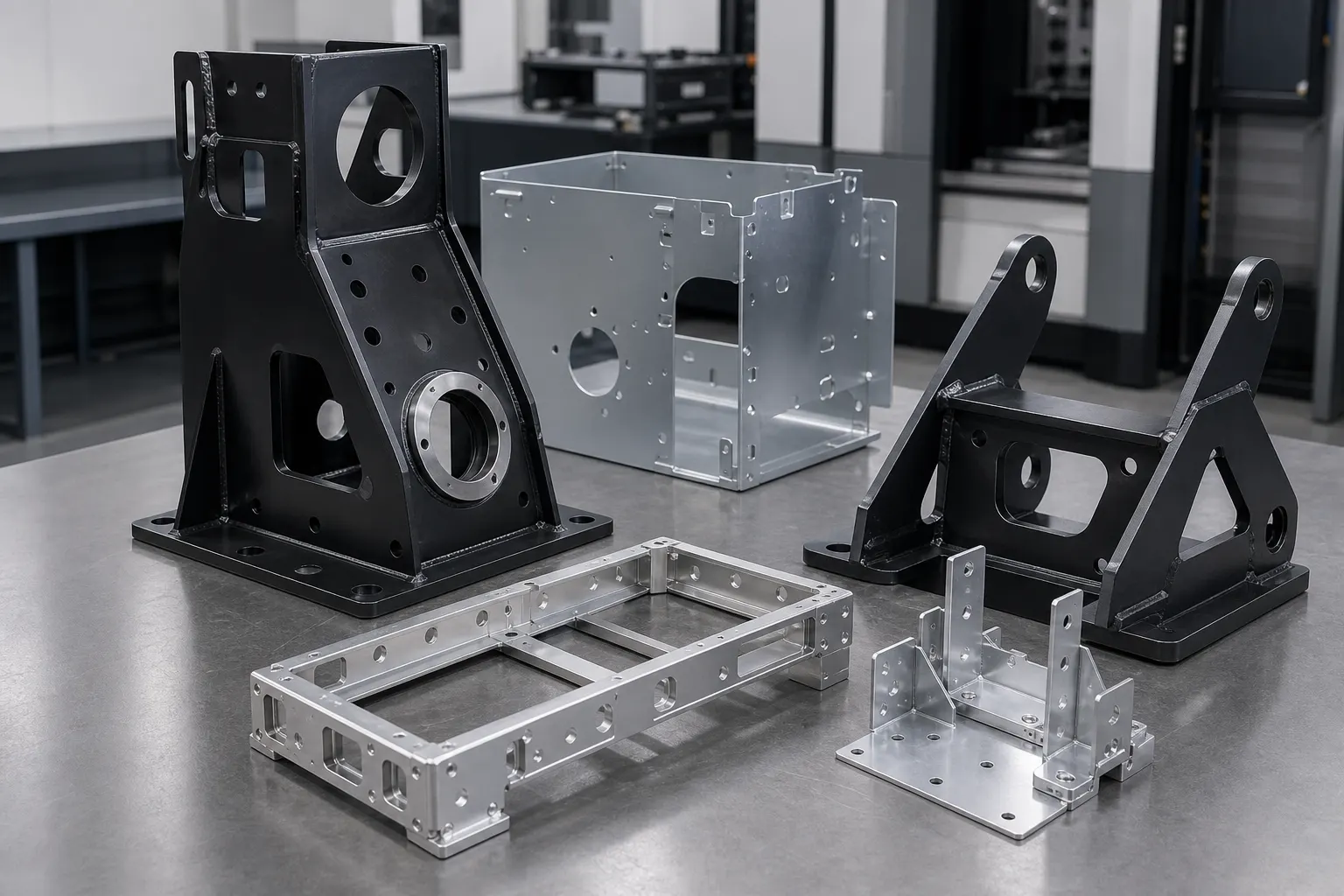

Metal Assemblies page image for Himount Precision
Home/Stamped Parts

Stamped Parts

Metal Assemblies

Metal assemblies that combine stamped parts with welding, riveting, inserts, hardware, and coordinated finishing for one-supplier project support.

Send drawings, samples or specifications for engineering review.

Request a Quote
Metal Assemblies made to drawings

Product Information

Material
Steel, Stainless Steel, Aluminum, Copper
Surface Treatment
Zinc Plating, Powder Coating, Nickel Plating
Manufacturing Process
Stamping, Welding, Riveting, PEM Insertion, Assembly
Tolerance
Custom by drawing
Standard / Custom
Custom / OEM
Application
Bracket assemblies, Cover assemblies, Electrical module assemblies
Request a Quote

Specifications

Key dimensions: Dimensions are confirmed from drawings or samples, including length, hole spacing, thickness, bore size, pitch, and end geometry where applicable.Material / surface: Steel, Stainless Steel, Aluminum, CopperTolerance control: Custom by drawingRecommended surface finish: Zinc Plating, Powder Coating, Nickel PlatingStandard / custom: Custom / OEM

Model / Standard Reference

China standard reference: matched against GB / GB/T or customer drawings when relevantLocal replacement reference: substitute codes can be reviewed from customer drawings or samplesInternational reference: ISO / DIN / ASTM / ANSI / AGMA mapping is confirmed during RFQ reviewSample stage: English specifications can include tolerance, material, bore, hole spacing, and assembly notes

Surface Finish Notes

Available finishes: Zinc Plating, Powder Coating, Nickel PlatingRecommended matching: Steel / Stainless Steel / Aluminum / Copper; select corrosion resistance, conductivity, or wear resistance by applicationOutdoor or humid use: prioritize corrosion-resistant finishesConductive or contact parts: review conductivity and coating stabilityVisible parts: confirm appearance consistency, cleaning, and anti-rust packing

Technical parameters

Stamped Parts Specifications

Use these parameters as the minimum RFQ basis before sending drawings or samples.
MaterialSteel, Stainless Steel, Aluminum, Copper
ThicknessConfirmed by drawing and forming requirement
ProcessStamping, Welding, Riveting, PEM Insertion, Assembly
Surface finishZinc Plating, Powder Coating, Nickel Plating
Secondary operationDeburring, Cleaning, Plating, Riveting, Welding, PEM insertion
ToleranceCustom by drawing
ToolingPrototype tooling, single-operation die, compound die, or progressive die depending on volume
Size capabilityWe support both small precision parts and larger custom metal components, depending on drawing size, material thickness, tooling method and production quantity.

Typical Applications

Bracket assembliesCover assembliesElectrical module assemblies

Product Advantages

One-supplier coordinationSecondary process supportAssembly hardwareInspection before shipment

Size Capability

Small precision partsMedium-size production partsLarger custom parts reviewed by drawing, material, tooling and quantity

Available Secondary Operations

DeburringCleaningPlatingRivetingWeldingPEM insertion

Assembly & Packing Options

Hardware insertionSubassembly packingInsulationRiveted assemblies

To quote accurately, please provide:

DrawingMaterialThicknessSurface finishToleranceAnnual quantityTooling requirementApplication

RFQ Next Step

Send the drawing, key dimensions, quantity, tolerance, finish, application, and packing requirement so we can review the quotation accurately.
